W - Ktlf Stainless Steel Female Thread Elbow Bite Type Fitting

Features: Live-load and dual-ferrule design;

The nut is coated to prevent seizing during installation and allows for repeated disassembly and reuse.

Category: Stainless steel bite type fittings Prev: W - Ktt Stainless Steel Tee Bite Type Fitting Next: W - Ktlm Stainless Steel Male Elbow Bite Type Fitting
Description Contact Us

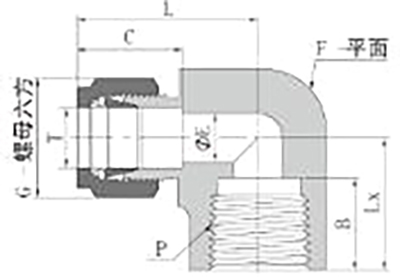

External Dimensions:



Model

L

B

C

E

Lx

Opposite side

Type

T

P(Rc) Thread

Nut G

Main body F

W-KTLF

3.18(1/8)

1/8

24.6

10.4

12.7

2.3

19.1

11.1

14.3

1/4

27.4

15

12.7

2.3

22.4

11.1

17.5

6

1/8

27

10.4

15.3

4.8

19.0

14

12.7

1/4

29.8

15

15.3

4.8

22.4

14

17.5

6.35(1/4)

1/8

26.9

10.4

15.2

4.8

19.1

14.3

14.3

1/4

29.7

15

15.2

4.8

22.4

14.3

17.5

3/8

31.8

15

15.2

4.8

22.4

14.3

20.6

1/2

34.5

19.8

15.2

4.8

28.4

14.3

24.5

8

1/8

28.8

10.4

16.2

4.8

19.1

16

14.3

1/4

30.6

15

16.2

6.4

22.4

16

17.5

9.53(3/8）

1/8

30.5

10.4

16.8

7.1

19.1

17.5

15.9

1/4

31.2

15

16.8

7.1

22.4

17.5

17.5

3/8

33.3

15

16.8

7.1

22.4

17.5

20.6

1/2

36.1

19.8

16.8

7.1

22.4

17.5

25.4

10

1/4

33.5

15

17.2

7.9

22.4

19

20.6

3/8

33.5

15

17.2

7.9

22.4

19

20.6

1/2

36.6

19.8

17.2

7.9

28.5

19

25.4

12

1/4

36

15

22.8

7.9

22.4

22

20.6

3/8

36

15

22.8

9.5

22.4

22

20.6

1/2

38.8

19.8

22.8

9.5

28.4

22

25.4

12.7(1/2）

1/4

36.1

15

22.9

10.4

22.4

22.2

20.6

3/8

36.1

15

22.9

10.4

22.4

22.2

20.6

1/2

38.9

19.8

22.9

10.4

28.4

22.2

25.4



Note: L.C is the dimension when tightened by hand. Dimensions in T dimension ( ) are in inches.
