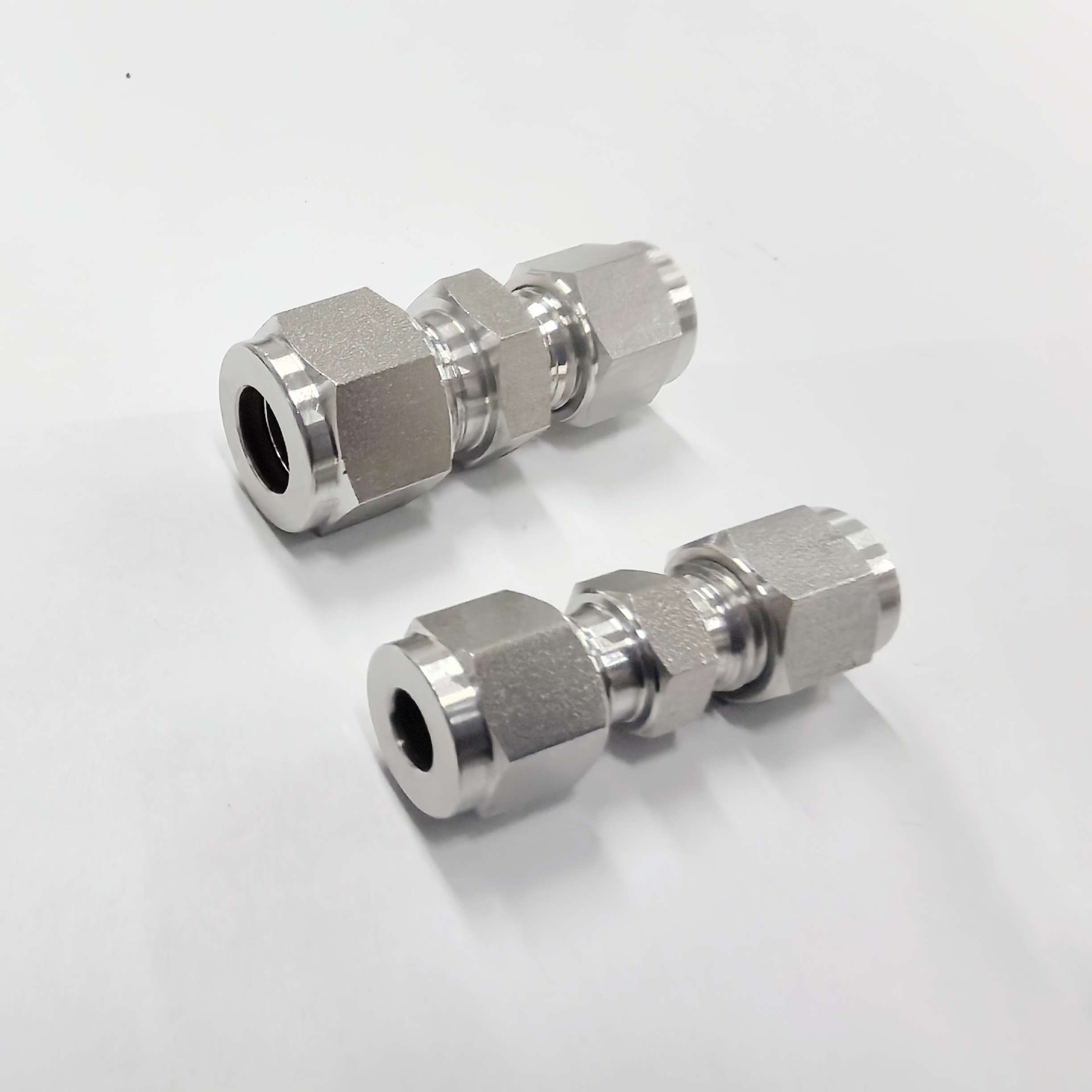

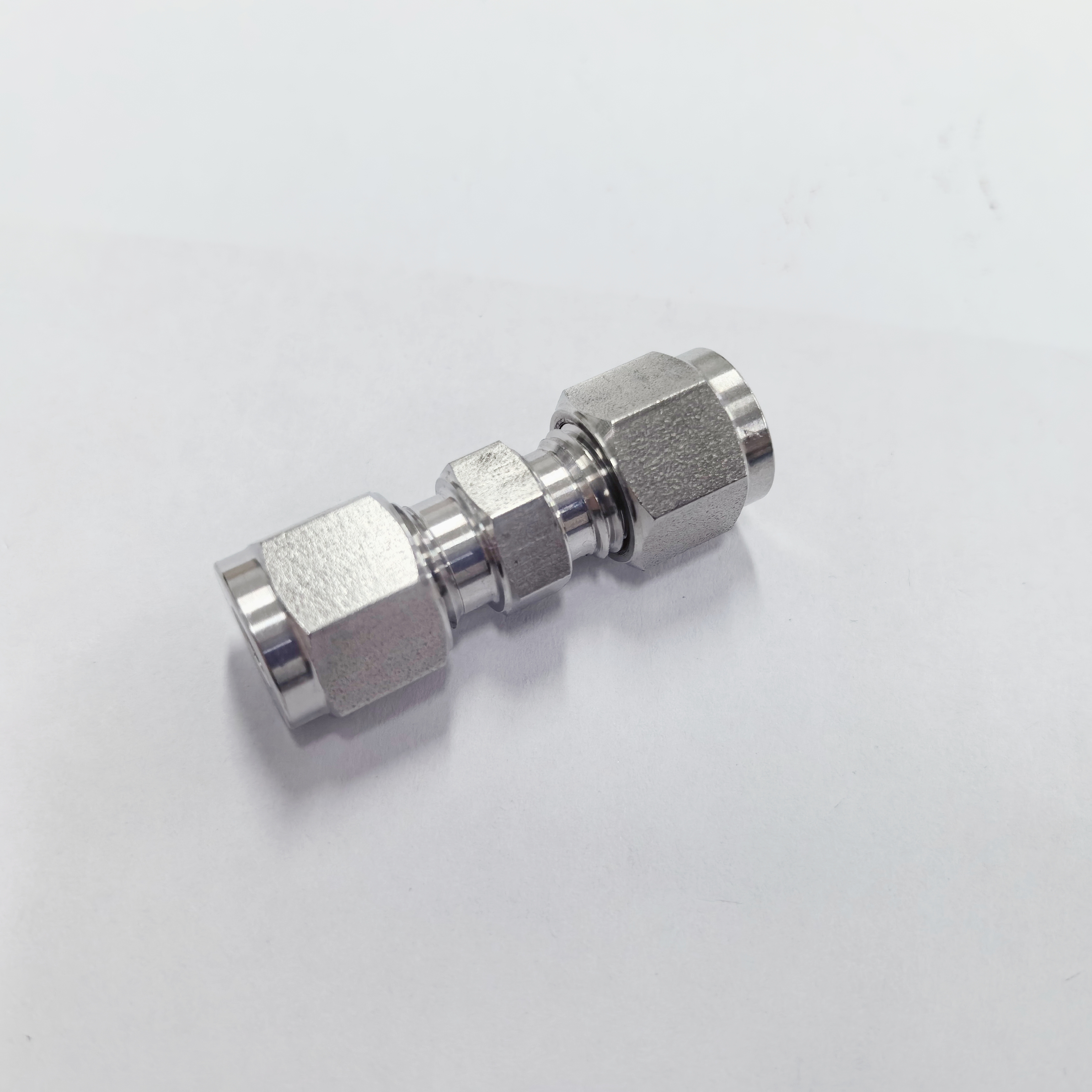

W - Ktz Stainless Steel Straight-Through Bite Type Fitting

Features: Live-load and dual-ferrule design;

The nut is coated to prevent seizing during installation and allows for repeated disassembly and reuse.

Category: Stainless steel bite type fittings Prev: W - KTZR Stainless Steel Reducing Straight-Through Bite Type Fitting Next: No next article
Description Contact Us

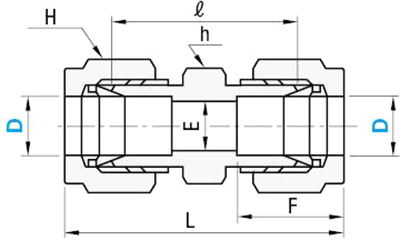

External Dimensions:



DN

L

E

F

I

Hexagon opposite sides

Type

φD

Main body h

Nut H

W-KTZ

3.18(1/8)

37.8

2.5

13.4

24

12

12

4

42.6

2.5

15.3

28

14

14

6

42.8

5

15.4

28

14

14

6,35(1/4)

42,8

5

15,4

28

14

14

8

44.6

6

16.8

29

14

15.87

9.53(3/8)

46.6

8

17.8

31

17

19

10

46.6

8

17.8

31

17

19

12

52.6

10

22.8

31

22

23

12.7(1/2)

52.6

10

22.8

31

22

23

Note: L and F are the dimensions when tightened by hand; the dimensions in D dimension ( ) are in inches

Product Description:
