Custom OEM/ODM 45° Stainless Steel Elbow (Long) Welding Fittings Manufacturers, Factory

45° Stainless Steel Elbow (Long) Welding Fittings

Why Are Stainless Steel Threaded Connectors Essential Today?
25 Mar, 2026
In modern piping and mechanical systems, reliability, corrosion resistance, and installation efficiency are no longer optional — they are standard requirements. Stainless steel thr...
View more
Why Choose Stainless Steel Flanges for Your Industrial Needs?
18 Mar, 2026
In various industrial applications, the choice of flange material is critical to ensure durability, strength, and long-term performance. Stainless steel flanges have become one of ...
View more
Why Are Stainless Steel Control Valves Essential for Modern Industrial Systems?
11 Mar, 2026
In modern industrial production, precise control of fluids such as water, steam, oil, and chemicals is critical for safety, efficiency, and cost management. Among the many componen...
View more
Why Are Stainless Steel Control Valves Essential in Modern Industrial Systems?
04 Mar, 2026
In modern industrial pipelines and automated process systems, control valves play a critical role in regulating flow, pressure, and temperature. Among various materials, stainless ...
View more

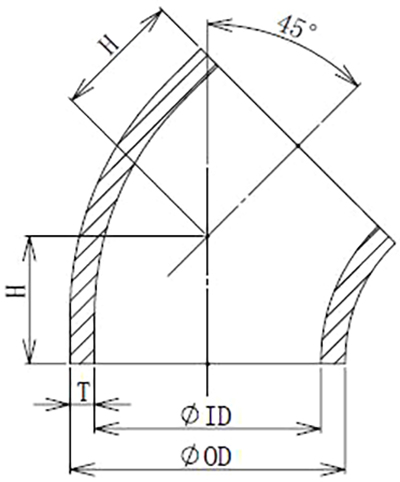

DN		OD	10S		20S		40S		The distance between the center line and the end face
A	B	OD	ID	T	ID	T	ID	T	45E(L)H	90E(L)F	90E(S)F
15	1/2	21.7	17.5	2.1	16.7	2.5	16.1	2.8	15.8	38.1	−
20	3/4	27.2	23	2.1	22.2	2.5	21.4	2.9	15.8	38.1	−
25	1	34.0	28.4	2.8	28	3.0	27.2	3.4	15.8	38.1	25.4
32	1" 1/4	42.7	37.1	2.8	36.7	3.0	35.5	3.6	19.7	47.6	31.8
40	1" 1/2	48.6	43.0	2.8	42.6	3.0	41.2	3.7	23.7	57.2	38.1
50	2	60.5	54.9	2.8	53.5	3.5	52.7	3.9	31.6	76.2	50.8
65	2" 1/2	76.3	70.3	3.0	69.3	3.5	65.9	5.2	39.5	95.3	63.5
80	3	89.1	83.1	3.0	81.1	4.0	78.1	5.5	47.3	114.3	76.2
90	3" 1/2	101.6	95.6	3.0	93.6	4.0	90.2	5.7	55.3	133.4	88.9
100	4	114.3	108.3	3.0	106.3	4.0	102.3	6.0	63.1	152.4	101.6
125	5	139.8	133.0	3.4	129.8	5.0	126.6	6.6	78.9	190.5	127.0
150	6	165.2	158.4	3.4	155.2	5.0	151.0	7.1	94.7	228.6	152.4
200	8	216.3	208.3	4.0	203.3	6.5	199.9	8.2	126.3	304.8	203.2
250	10	267.4	259.4	4.0	254.4	6.5	248.8	9.3	157.8	381.0	254.0
300	12	318.5	309.5	4.5	305.5	6.5	297.9	10.3	189.4	457.2	304.8
350	14	355.6	345.6	5.0	339.6	8.0	333.4	11.1	220.9	533.4	355.6
400	16	406.4	396.4	5.0	390.4	8.0	381.0	12.7	252.5	609.6	406.4
450	18	457.2	447.2	5.0	441.2	8.0	428.6	14.3	284.1	685.8	457.2
500	20	508.0	497.0	5.5	489.0	9.5	477.8	15.1	315.6	762.0	508.0
550	22	558.8	547.8	5.5	539.8	9.5	527.0	15.9	347.2	838.2	558.8
600	24	609.6	596.6	6.5	590.6	9.5	574.6	17.5	378.7	914.4	609.6
