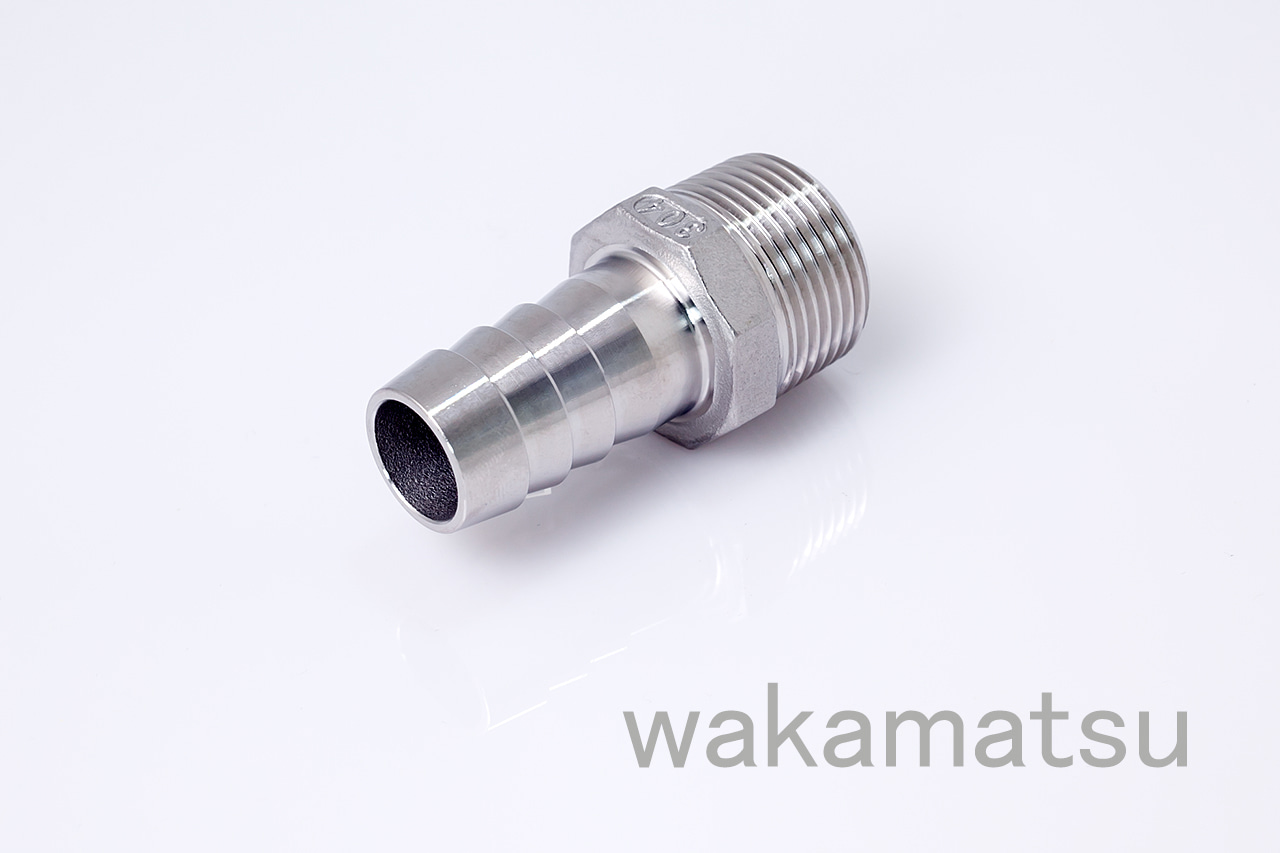

VHN, WCH, WMCH stainless steel hexagonal male hose fittings

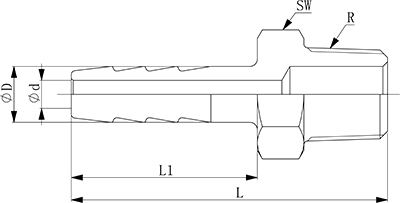

DN

R Thread

ΦD

d

L

L1

SW

Remark

1/8*6

1/8

6.0

3.0

34.0

20

12

1/8*7

1/8

7.0

4.0

34.0

20

12

1/8*8

1/8

8.0

5.0

37.0

23

12

1/8*9

1/8

9.0

5.5

37.0

23

12

1/8*10.5

1/8

10.5

6.0

39.0

25

12

1/8*12

1/8

12.0

6.0

45.0

31

12

1/8*12.7

1/8

12.7

6.0

45.0

31

14

1/4*6

1/4

6.0

3.0

40.0

23

14

1/4*7

1/4

7.0

4.0

40.0

23

14

1/4*8

1/4

8.0

5.0

40.0

23

14

1/4*9

1/4

9.0

5.5

40.0

23

14

1/4*10.5

1/4

10.5

6.0

42.0

25

14

1/4*12

1/4

12.0

8.0

48.0

31

14

1/4*12.7

1/4

12.7

8.0

48.0

31

14

1/4*14

1/4

14.0

8.0

48.0

31

14

3/8*6

3/8

6.0

3.0

44.0

25

17

3/8*7

3/8

7.0

4.0

44.0

25

17

3/8*8

3/8

8.0

5.0

44.0

25

17

3/8*9

3/8

9.0

5.5

44.0

25

17

3/8*10.5

3/8

10.5

6.0

44.0

25

17

3/8*12

3/8

12.0

8.0

50.0

31

17

3/8*12.7

3/8

12.7

8.0

50.0

31

17

3/8*14

3/8

14.0

10.0

50.0

31

17

3/8*16

3/8

16.0

10.0

50.0

31

17

1/2*8

1/2

8.0

5.0

54.0

31

22

1/2*9

1/2

9.0

5.5

54.0

31

22

1/2*10.5

1/2

10.5

6.0

54.0

31

22

1/2*12

1/2

12.0

8.0

54.0

31

22

1/2*12.7

1/2

12.7

8.0

54.0

31

22

1/2*14

1/2

14.0

10.0

54.0

31

22

1/2*15.2

1/2

15.2

9.5

55.6

28

22

Precision casting

1/2*16

1/2

16.0

11.0

54.0

31

22

1/2*19

1/2

19.0

14.0

58.0

35

22

1/2*20

1/2

20.0

14.0

56.5

33

22

Precision casting

1/2*21

1/2

21.0

15.0

58.0

35

22

3/4*16

3/4

16.0

10.8

57.0

33

28

Precision casting

3/4*19

3/4

19.0

13.6

56.0

33

28

Precision casting

3/4*21

3/4

21.0

15.1

56.0

33

28

Precision casting

3/4*25

3/4

25.0

19.0

58.0

33

28

Precision casting

3/4*26

3/4

26.0

19.0

58.0

33

28

Precision casting

3/4*27

3/4

27.0

18.5

66.0

41

30

Precision casting

1/21

1

21.0

14.0

75.0

41

38

Precision casting

1/25

1

25.0

18.0

65.5

38

36

Precision casting

1/26

1

26.0

18.0

65.5

38

36

Precision casting

1/27

1

27.0

19.0

62.0

37

35

Precision casting

1/32

1

32.0

25.5

64.0

37

35

Precision casting

1/33

1

33.0

26.0

69.0

40

36

Precision casting

1"1/4*25

1"/14

25.0

18.0

68.0

40

43.5

1"1/4*34

1"/14

34.0

27.1

69.0

40

43.5

Precision casting

1"1/2*39.5

1/12

39.5

31.0

75.0

46

49.5

Precision casting

2*50.5

2

50.5

41.0

99.5

63

63.0

Precision casting

2*52.5

2

52.5

41.5

102.2

63

63.0

Precision casting

2"12*65.5

2*12

65.5

52.0

115.0

77

77.5

Precision casting
