Custom Nipple,VWN/VWLN stainless steel single-ended male connector

Shanghai Wakamatsu Metal Products Co., Ltd. Home / Products / Stainless steel connectors / Stainless steel threaded connector / Nipple,VWN/VWLN stainless steel single-ended male connector
  • Nipple,VWN/VWLN stainless steel single-ended male connector
  • Nipple,VWN/VWLN stainless steel single-ended male connector

Nipple,VWN/VWLN stainless steel single-ended male connector

Category: Stainless steel threaded connector Prev: WMFB/WMFLB stainless steel female connector, extension connector Next: Nipple,VN/VLN stainless steel double-ended male connector
Description Contact Us

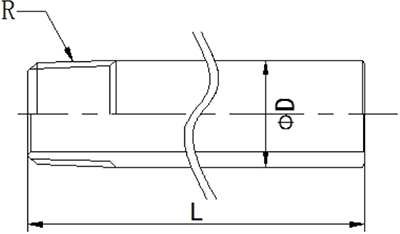

External Dimensions:



DN

R Thread

D

L

Short Type VWN

Long Type VWLN

6A

1/8

10.5

24.25

50、75、100、125、150、200

8A

1/4

13.8

26.25

50、75、100、125、150、200

10A

3/8

17.3

28.25

50、75、100、125、150、200

15A

1/2

21.7

34.3

50、75、100、125、150、200

20A

3/4

27.2

38.3

50、75、100、125、150、200

25A

1

34

42.4

50、75、100、125、150、200

32A

1"1/4

42.7

50.4

75、100、125、150、200

40A

1"1/2

48.6

50.4

75、100、125、150、200

50A

2

60.5

58.4

75、100、125、150、200

65A

2"1/2

76.3

70.4

100、150、200

80A

3

89.1

78.4

100、150

100A

4

114.3

90.4

100、150

Product Description:
Operating Temperature℃ -20~40℃ 100℃ 150℃ 200℃ 220℃
Naximum Permissible Pressure Mpa 2.00 1.65 1.50 1.40 1.35
Using Fluids Water, Oil, Air, Vapour, Gas(Other than Flammable, Toxic)
