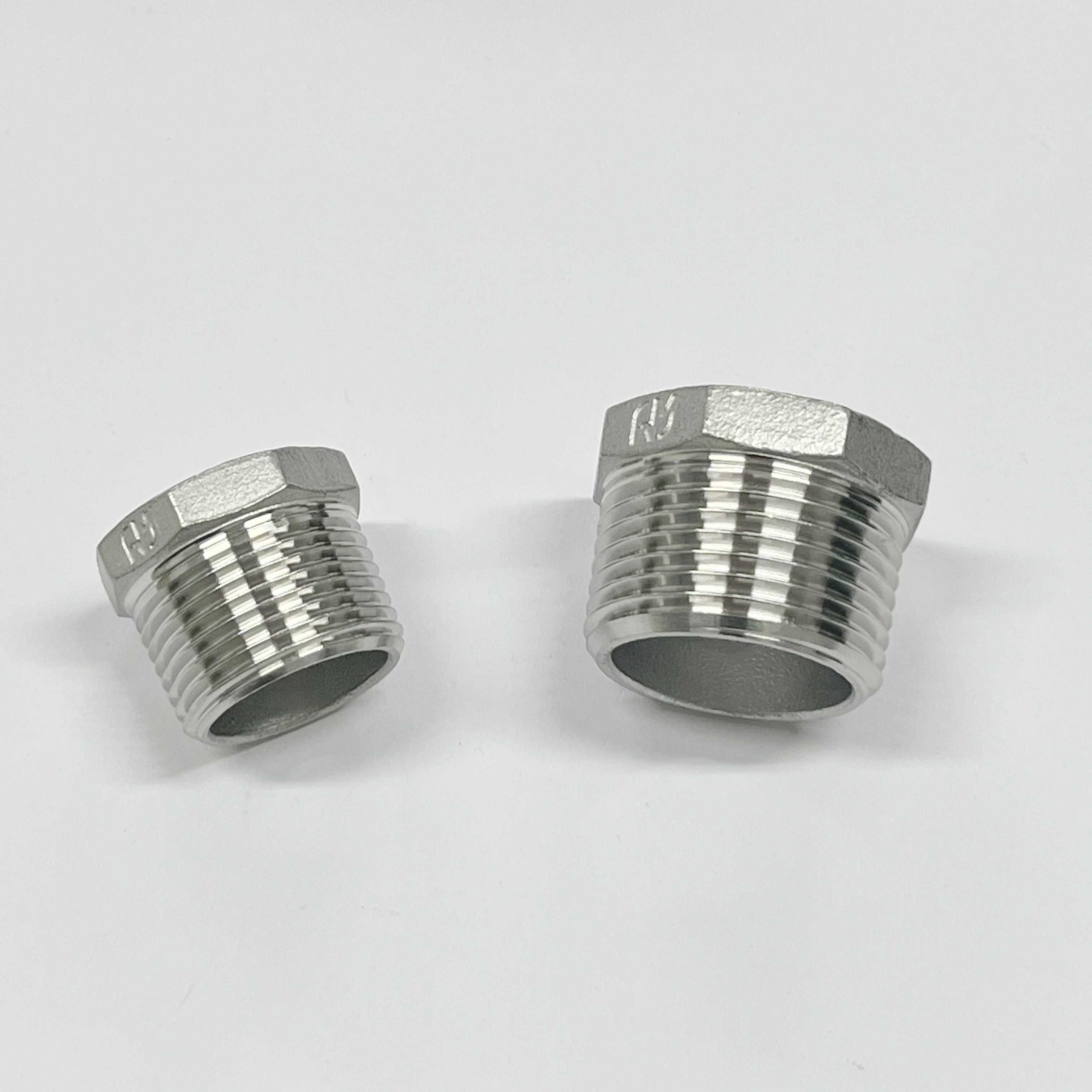

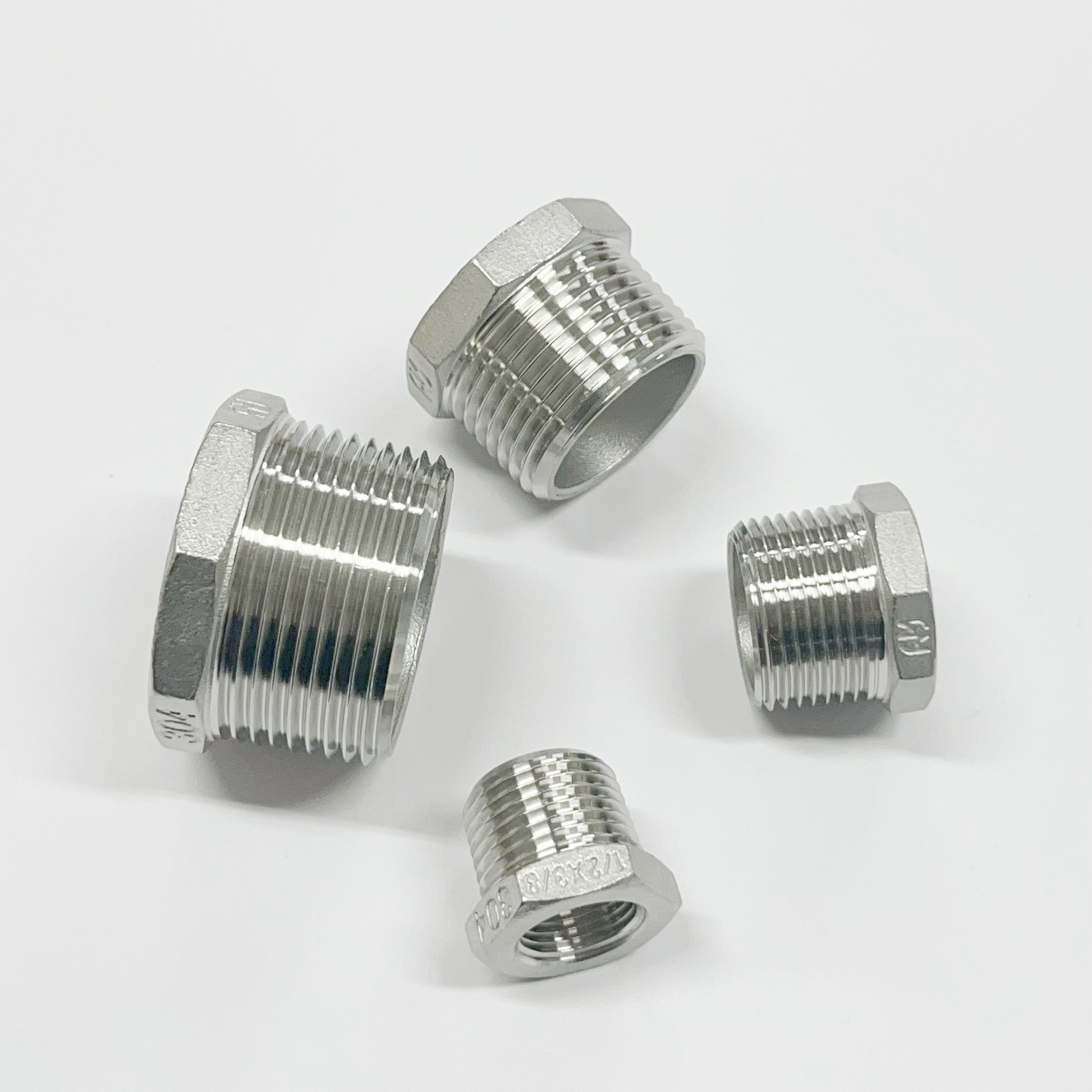

WBU/WMBU stainless steel bushing connectors

Shanghai Wakamatsu Metal Products Co., Ltd. Home / Products / Stainless steel pipe fittings / Stainless steel threaded connector / WBU/WMBU stainless steel bushing connectors
  • WBU/WMBU stainless steel bushing connectors
  • WBU/WMBU stainless steel bushing connectors

WBU/WMBU stainless steel bushing connectors

Category: Stainless steel threaded connector Prev: WMF stainless steel male/female adapters Next: WSFG stainless steel hexagonal equal-diameter adapter
Description Contact Us
External Dimensions:



DN

RxRc Thread

L

L1

SW

8A*6A

1/4*1/8

19.0

6.0

13.8

10A*6A

3/8*1/8

20.0

6.0

17.5

10A*8A

3/8*1/4

20.0

6.0

17.5

15A*6A

1/2*1/8

22.0

7.0

21.8

15A*8A

1/2*1/4

24.0

7.0

21.8

15A*10A

1/2*3/8

24.0

7.0

21.8

20A*6A

3/4*1/8

26.0

8.0

27.5

20A*8A

3/4*1/4

26.0

8.0

27.5

20A*10A

3/4*3/8

26.0

8.0

27.5

20A*15A

3/4*1/2

26.0

8.0

27.5

25A*8A

1*1/4

27.0

8.0

33.8

25A*10A

1*3/8

27.0

8.0

34.3

25A*15A

1*1/2

27.0

8.0

34.3

25A*20A

1*3/4

27.0

8.0

34.3

32A*15A

11/4*1/2

27.5

6.5

43.5

32A*20A

11/4*3/4

27.5

6.5

43.5

32A*25A

11/4*1"

30.5

9.5

43.8

40A*15A

11/2*1/2

27.5

6.5

49.0

40A*20A

11/2*3/4

31.0

9.0

48.8

40A*25A

11/2*1

27.5

6.5

49.0

40A*32A

11/2*1"1/4

27.5

6.5

49.0

50A*15A

2*1/2

32.0

7.0

62.5

50A*20A

2*3/4

35.0

9.0

62.5

50A*25A

2*1

35.0

9.0

62.5

50A*32A

2*11/4

33.0

8.0

62.5

50A*40A

2*11/2

32.0

7.0

62.5

65A*10A

21/2*3/8

37.5

8.0

77.0

65A*15A

21/2*1/2

37.5

8.0

77.0

65A*25A

21/2*1'

35

10

78

65A*50A

21/2*2

35

10

78

80A*40A

3*11/2

45

12

95

80A*50A

3*2

45

12

95

80A*65A

3*21/2

45

12

95

100A*50A

4*2

52

14

120

100A*80A

4*3

52

14

120

DN

RxRc Thread

L

L1

SW

8A*6A

1/4*1/8

17.0

5.0

15.0

10A*6A

3/8*1/8

19.0

6.0

18.0

10A*8A

3/8*1/4

19.0

6.0

18.0

15A*8A

1/2*1/4

21.5

6.0

24.0

15A*10A

1/2*3/8

21.5

6.0

24.0

20A*6A

3/4*1/8

23.0

6.0

29.0

20A*8A

3/4*1/4

23.0

6.0

29.0

20A*10A

3/4*3/8

23.0

6.0

29.0

20A*15A

3/4*1/2

23.0

6.0

29.0

25A*15A

1*1/2

26.5

7.0

36.0

25A*20A

1*3/4

26.5

7.0

36.0

32A*20A

1"1/4*3/4

29.5

7.0

44.0

32A*25A

1"1/4*1

29.5

7.0

44.0

40A*25A

1"1/2*1

29.5

7.0

51.0

40A*32A

1"1/2*1"1/4

29.5

7.0

51.0

50A*32A

2*1"1/4

34.5

8.0

63.0

50A*40A

2*1"1/2

34.5

8.0

63.0

Note: Starting from 3/4 of the external thread is octagonal.

Product Description:
Operating Temperature℃ -20~40℃ 100℃ 150℃ 200℃ 220℃
Naximum Permissible Pressure Mpa 2.00 1.65 1.50 1.40 1.35
Using Fluids Water, Oil, Air, Vapour, Gas(Other than Flammable, Toxic)
