Wv701 Y-Type Stainless Steel Filter

Materials

Main body: SCS13A/SCS14A.

Filter: SUS304/SUS316.

Gasket: PTFE.

Specifications

Applicable media: Water, oil, and gas.

Applicable temperature: ≤150°C.

Maximum allowable pressure: 1.96 MPa (room temperature).

Seal check pressure: Air pressure 0.59 MPa.

Features: Can separate and remove foreign matter and impurities from fluids.

Category: Stainless steel Y-type strainer Prev: No previous article Next: No next article
Description Contact Us

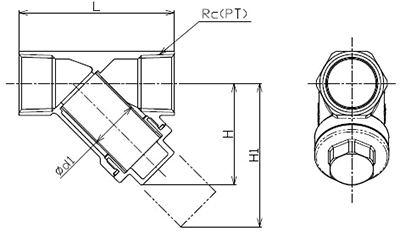

External Dimensions:



Rc Thread

L

Φd1

H

H1

1/4

65

19

41.9

61

3/8

65

19

41.9

61

1/2

65

19

41.9

61

3/4

75

24

50.7

74

1

90

29

58.7

89

1'1/4

105

35

67.7

101

1'1/2

120

43

77.9

116

2

140

52

92.7

138

Note: H1 is the space necessary to replace the filter elemen.
