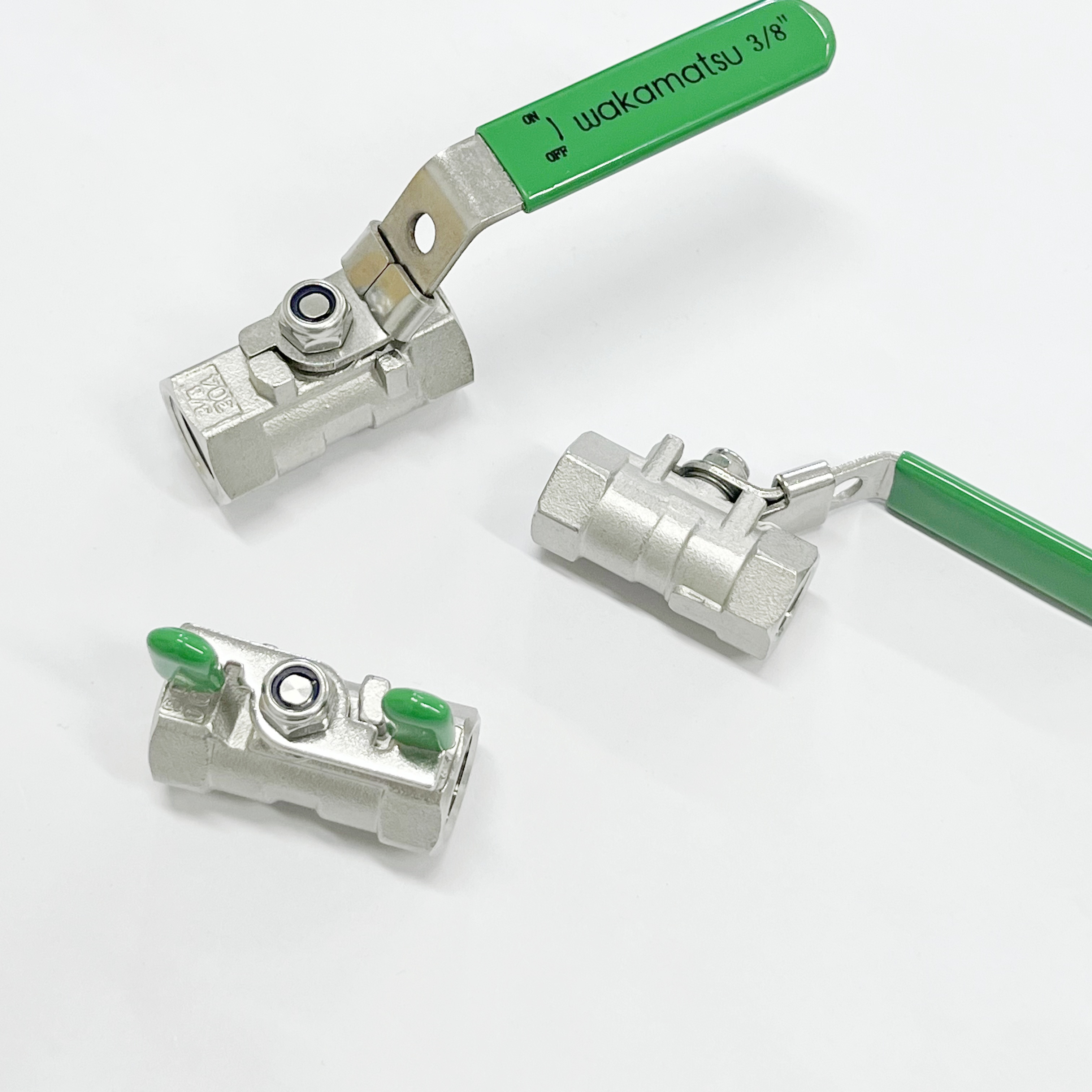

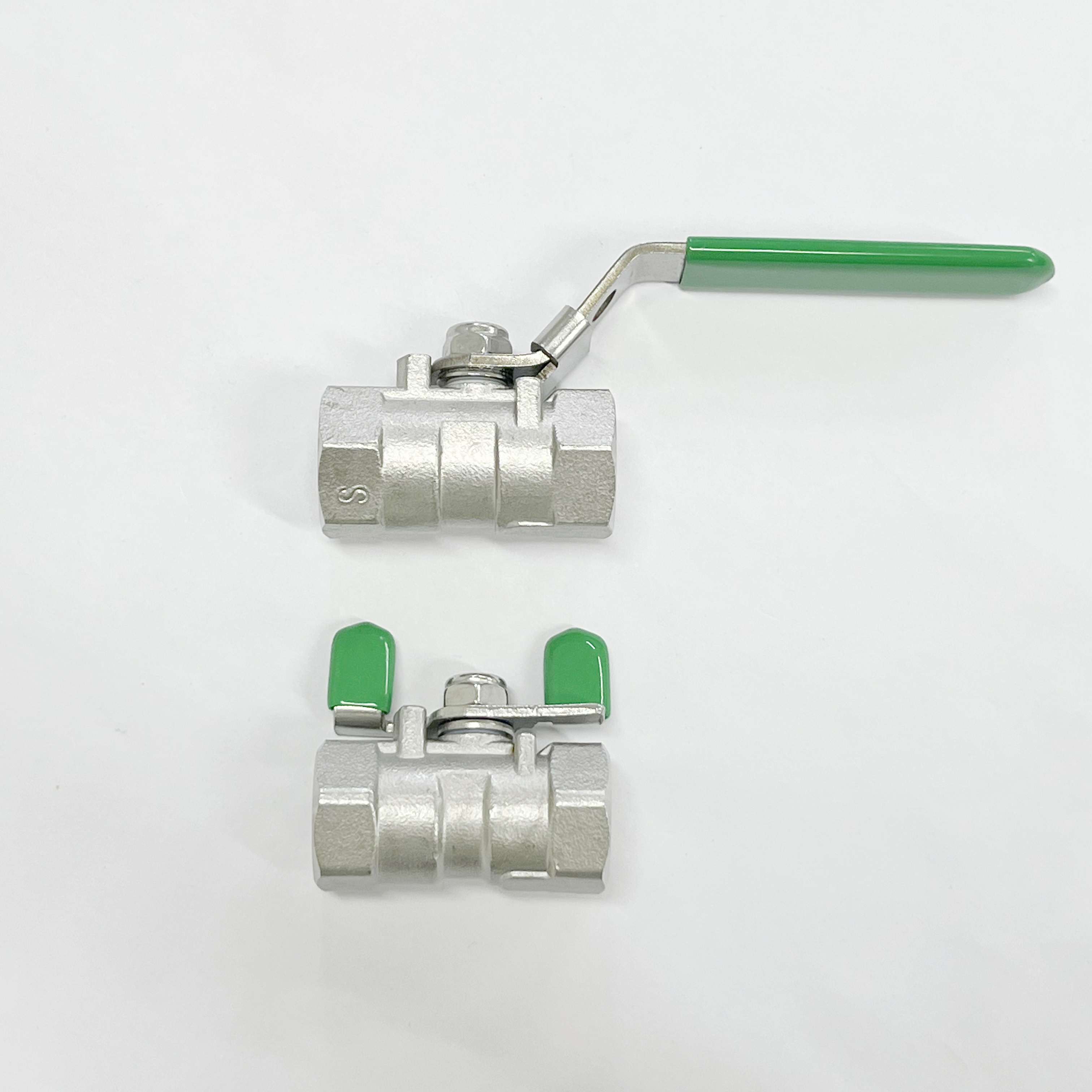

Wv101/Wv101b Stainless Steel One-Piece Ball Valve

Specifications

Maximum allowable pressure: 4.12 MPa for water, oil, and gas at room temperature; 0.5 MPa for saturated steam.

Seal check pressure: 0.59 MPa.

Operating temperature range: -20°C to 180°C.

Category: Stainless steel ball valve Prev: Wv102/Wv102b Stainless Steel Two-Piece Ball Valve Next: No next article
Description Contact Us

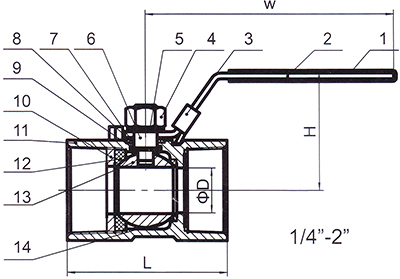

External Dimensions:

NO

Name

Material

1

HANDLE COVER

PVC

2

HANDLE

304

3

LOCK

304

4

NUT

304

5

SPRING WASHER

304

6

STEM

304/316

7

PACK RING

304

8

STEM PACKING

PTFE

9

THRUST WASHER

PTFE

10

CAP

304/316

11

BODY

304/316

12

BALL SEAT(A)

PTFE

13

BALL

304/316

14

BALL SEAT(B)

PTFE



Unit：mm

Rc Thread

φD

L

H

S

W

W butterfly pattern

1/4

5.0

39.0

31

17

65

40

3/8

6.8

44.0

36

21

85

41

1/2

9.2

56.5

41

25

95

56

3/4

12.5

59.0

44

32

95

56

1

15.0

71.0

48

38

111

70
Product Description:
