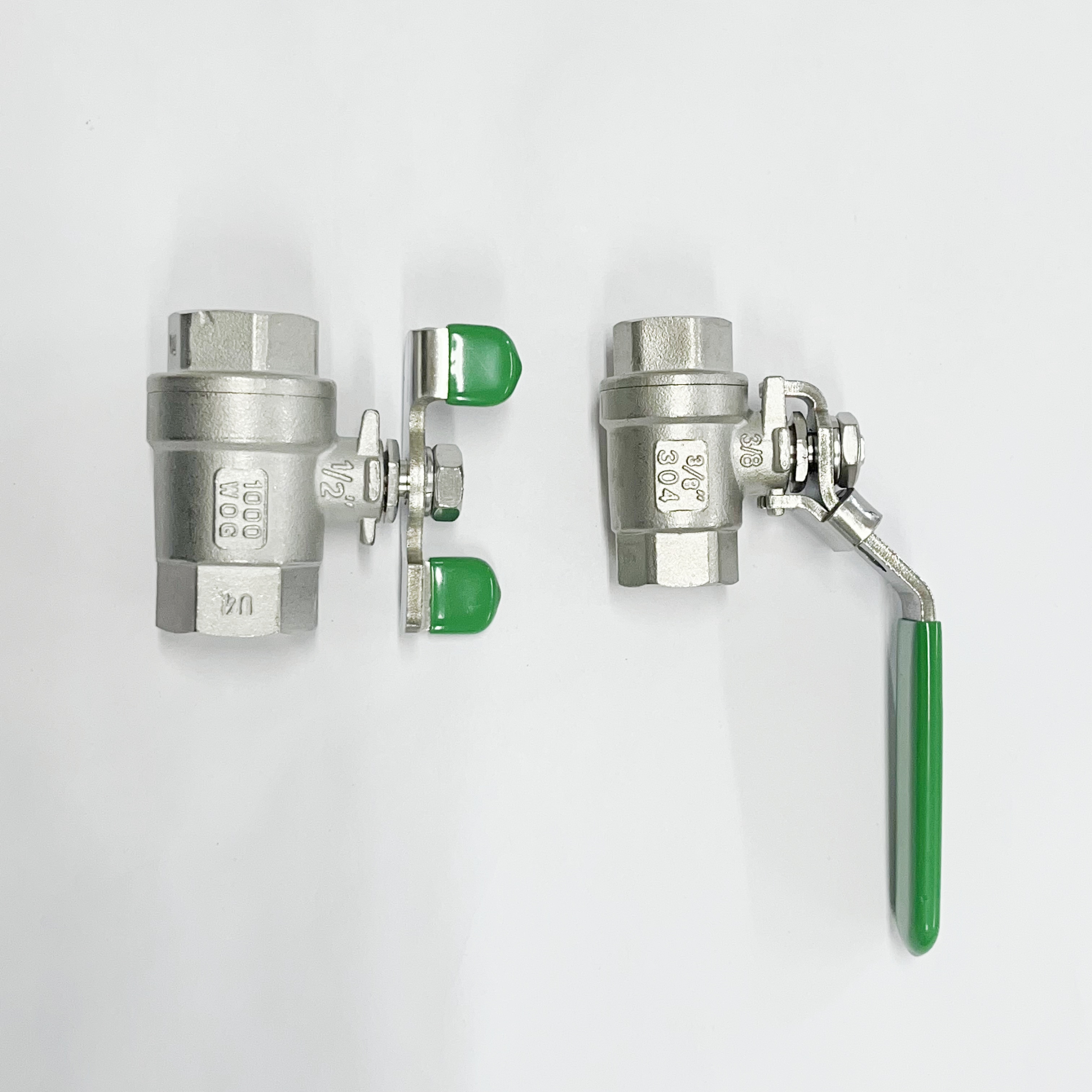

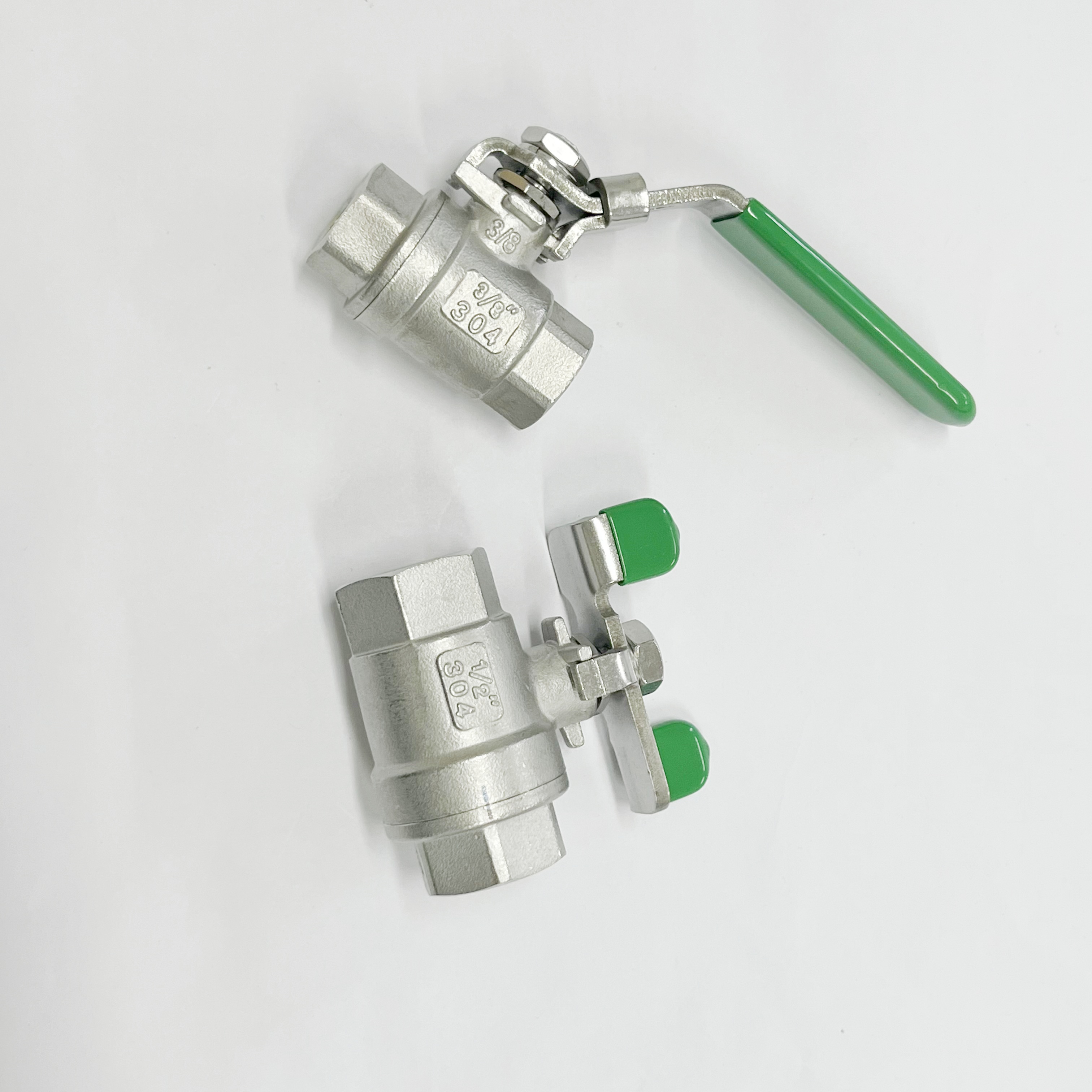

Wv102/Wv102b Stainless Steel Two-Piece Ball Valve

Specifications

Maximum allowable pressure: 5.49 MPa for water, oil, and gas at room temperature; 0.5 MPa for saturated steam.

Seal check pressure: 0.59 MPa.

Operating temperature range: -20°C to 180°C.

Category: Stainless steel ball valve Prev: Wv102fm Stainless Steel Two-Piece Female And Male Thread Ball Valve Next: Wv101/Wv101b Stainless Steel One-Piece Ball Valve
Description Contact Us

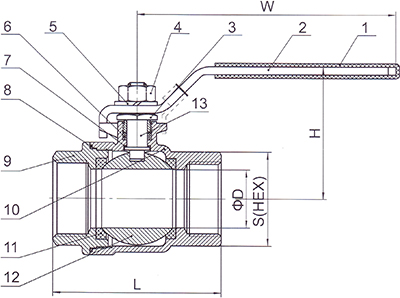

External Dimensions:



NO

Name

Material

1

HANDLE COVER

PVC

2

HANDLE

304

3

GLAND NUT

304

4

STEM NUT

304

5

SPRING WASHER

304

6

STEM PACKING

PTFE

7

THRUST WASHER

PTFE

8

JOINT GASKET

PTFE

9

CAP

304/316

10

BODY

304/316

11

BALL SEAT

PTFE

12

BALL

304/316

13

STEM

304/316

  Unit：mm

Rc Thread

D

L

H

S

W

W Butterfly pattern

1/4

11.6

48.5

44

19

91

59

3/8

12.5

48.5

44

21

91

59

1/2

15

58

52

25.5

91

59

3/4

20

64

61

31

111

63

1

25

77

65

37.5

111

73

1"1/4

32

90

79

46.5

154

–

1"1/2

38

98

83

53.5

154

–

2

50

121

97

66

192

–

2"1/2

64

145

129

82.5

246

–

3

76

166

138

97.5

246

–

4

94

240

175

130

317

–

Product Description:
