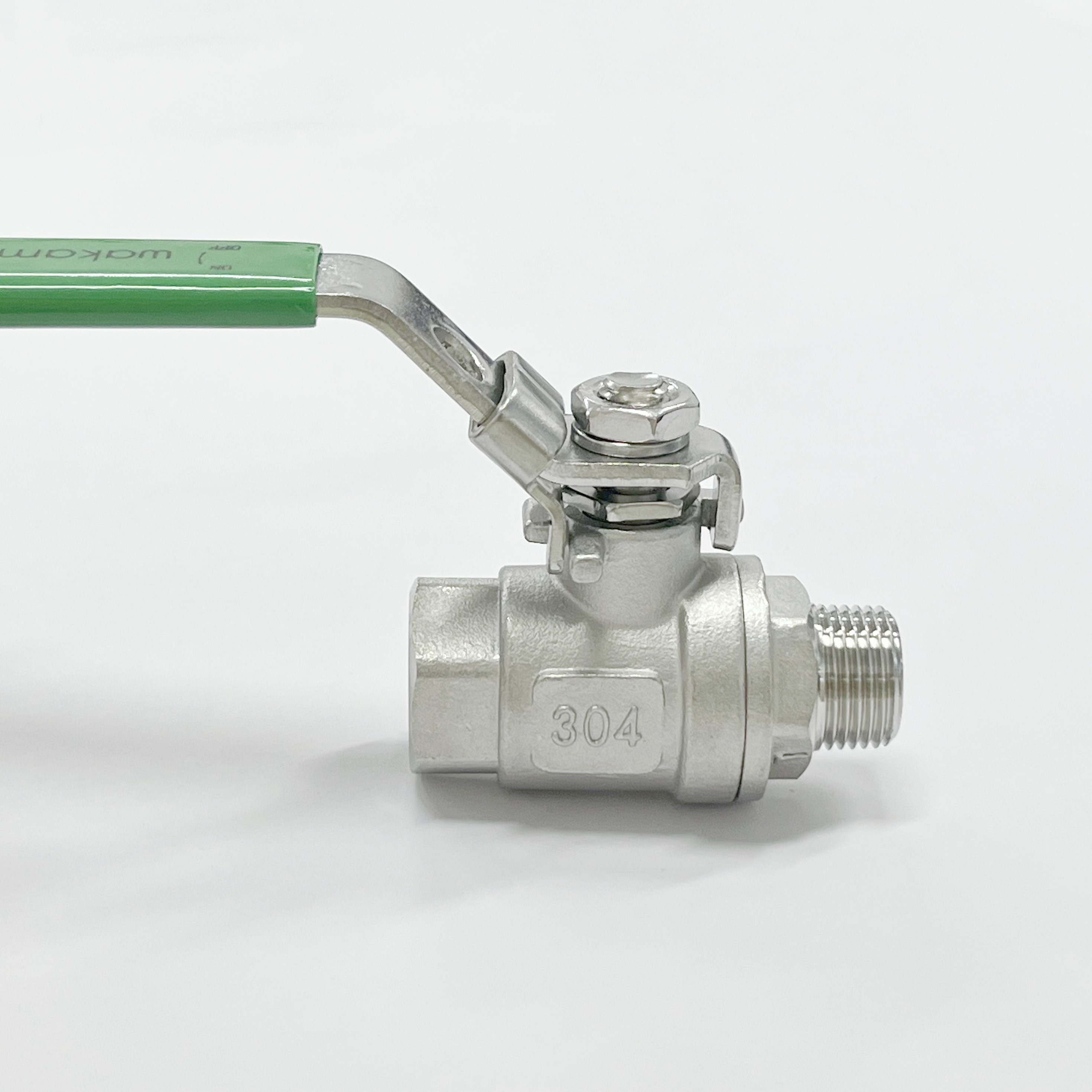

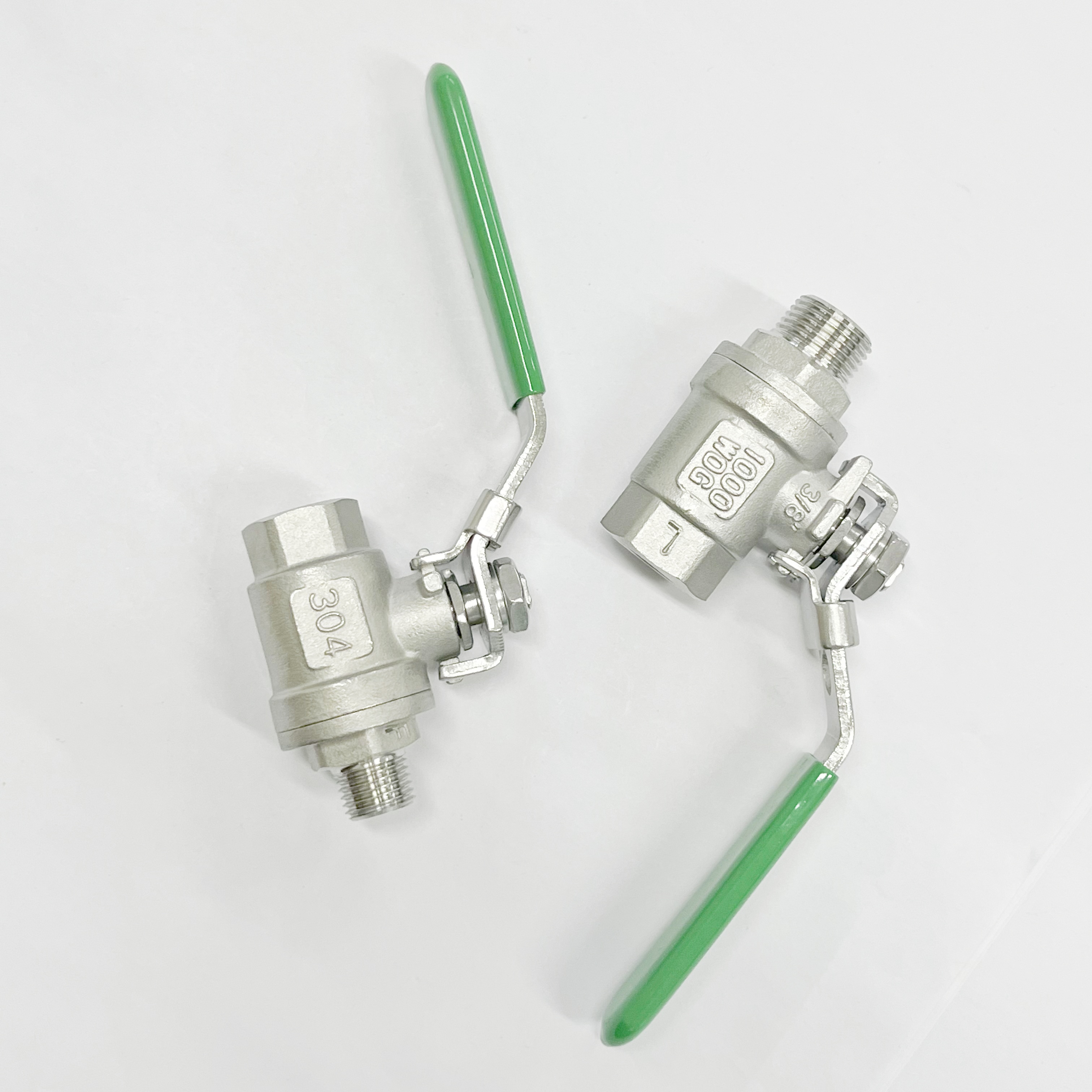

Wv102fm Stainless Steel Two-Piece Female And Male Thread Ball Valve

Specifications

Maximum allowable pressure: 5.49 MPa for water, oil, and gas at room temperature; 0.5 MPa for saturated steam.

Seal check pressure: 0.59 MPa.

Operating temperature range: -20°C to 180°C.

Category: Stainless steel ball valve Prev: Wv103 Stainless Steel Three-Piece Ball Valve Next: Wv102/Wv102b Stainless Steel Two-Piece Ball Valve
Description Contact Us

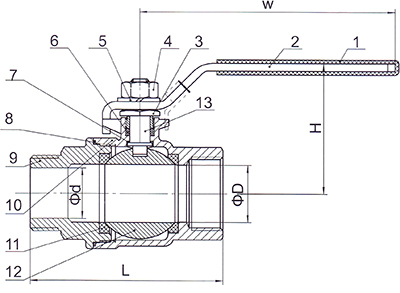

External Dimensions:



NO

Name

Material

1

HANDLE COVER

PVC

2

HANDLE

304

3

GLAND NUT

304

4

STEM NUT

304

5

SPRING WASHER

304

6

STEM PACKING

PTFE

7

THRUST WASHER

PTFE

8

JOINT GASKET

PTFE

9

CAP

304/316

10

BODY

304/316

11

BALL SEAT

PTFE

12

BALL

304/316

13

STEM

304/316



R·Rc Thread

D

d

L

H

W

1/4

11.6

8

55

44

91

3/8

12.5

11.4

55

44

91

1/2

15

13.6

71.5

50

91

3/4

20

18.2

78

59

111

1

25

23

91

65

111

1"1/4

32

31

100

79

154

1"1/2

38

38

112

83

154

2

50

48

142

99

192

Product Description:
