Custom Wv104 Stainless Steel Three-Way Ball Valve

Shanghai Wakamatsu Metal Products Co., Ltd. Home / Products / Stainless steel valves / Stainless steel ball valve / Wv104 Stainless Steel Three-Way Ball Valve
  • Wv104 Stainless Steel Three-Way Ball Valve
  • Wv104 Stainless Steel Three-Way Ball Valve

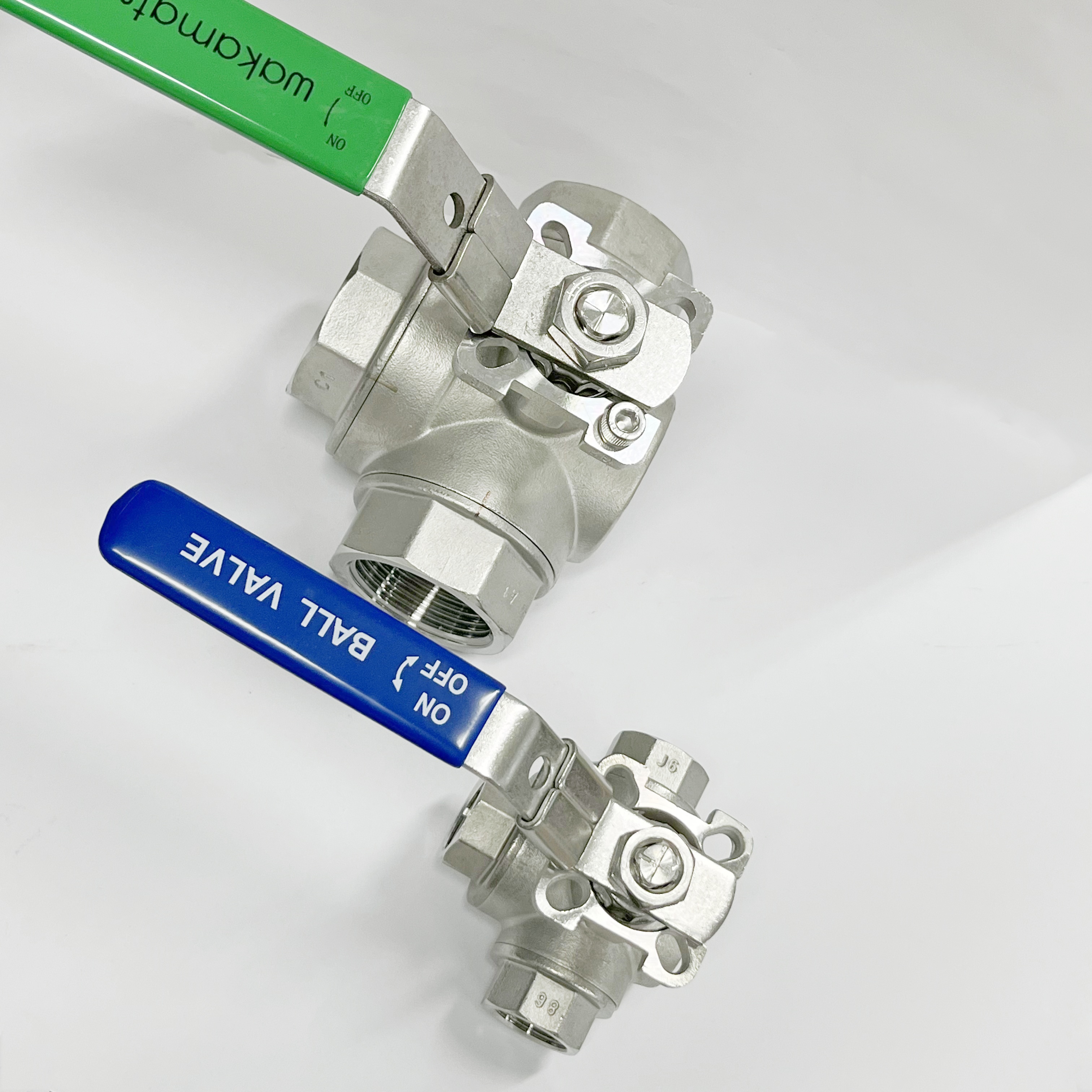

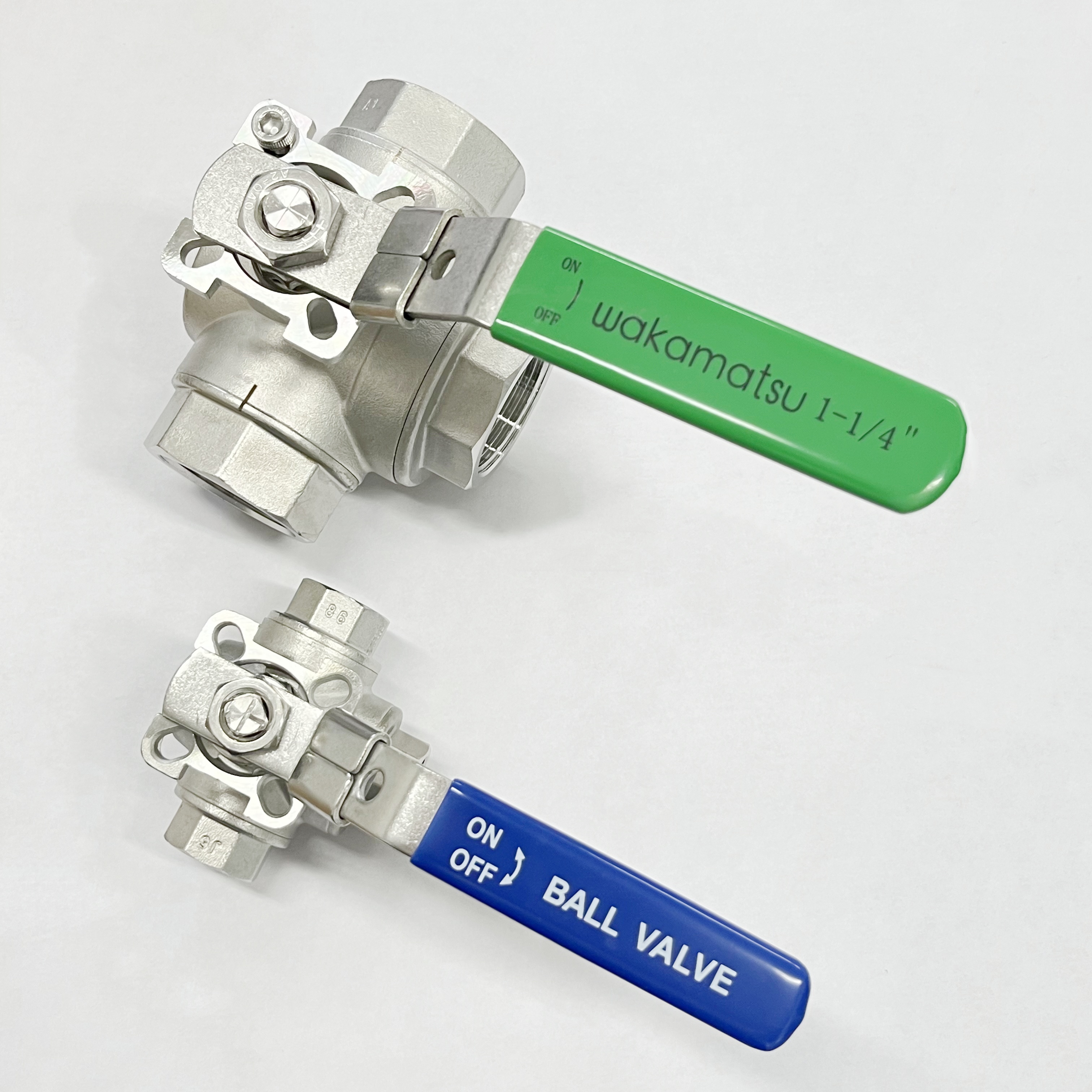

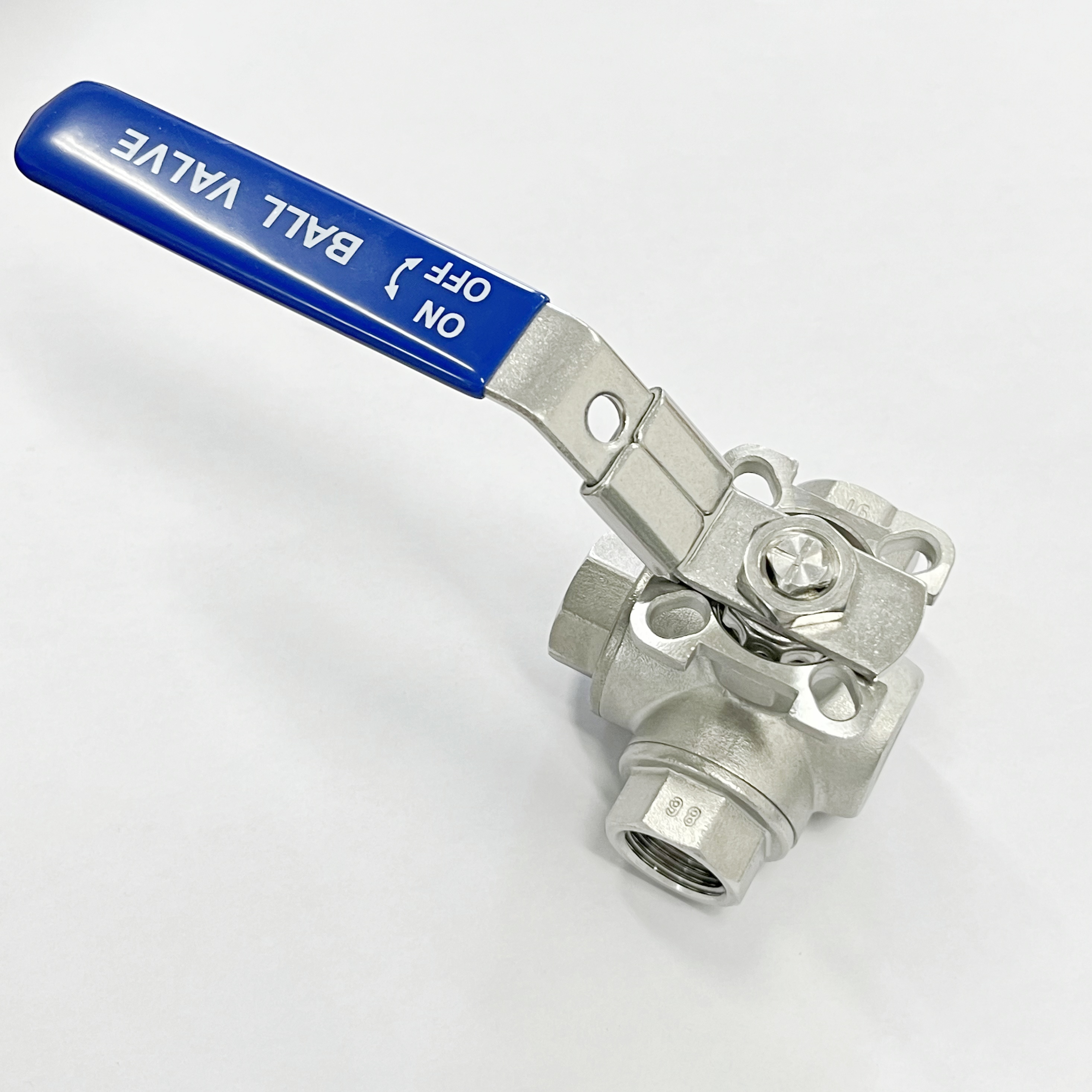

Wv104 Stainless Steel Three-Way Ball Valve

Specifications

Maximum allowable pressure: 6.3 MPa for water, oil, and gas at room temperature; 0.5 MPa for saturated steam.

Seal check pressure: 0.59 MPa.

Operating temperature range: -20°C to 180°C.

Category: Stainless steel ball valve Prev: Wv301 Stainless Steel One-Piece Flange Ball Valve Next: Wv103 Stainless Steel Three-Piece Ball Valve
Description Contact Us
External Dimensions:

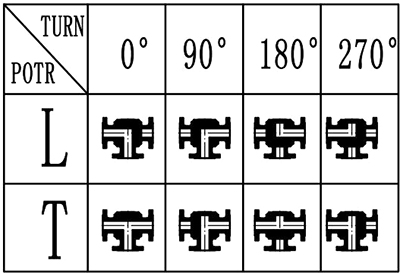

Flow direction description





NO.

Name

Material

1

BODY

304/316

2

CAP(1)

304/316

3

CAP(2)

304/316

4

BALL

304/316

5

BALL SEAT

PTFE

6

STEM

304/316

7

THRUSTWASHER

PTFE

8

STEMPACKING

PTFE

9

GLANDNUT

304

10

SPRINGWASHER

304

11

NUT

304

12

HANDLECOVER

PVC

13

HANDLE

304/316

14

WASHER

304

15

THRUSTWASHER

304

16

O-RING

VITON

17

JOINTGASKET

PTFE



R.Rc Thread

D

W±2

L±2

L1±2

H±2

B

E±1

H1

1/4

9

143

79

64

76

9.0

9.0

42

3/8

11

143

79

64

76

9.0

9.0

42

1/2

12.5

143

79

64

76

9.0

9.0

42

3/4

16

143

83

68

80

9.0

9.0

49

1

20

163

102

82

95

11.0

11.0

59.5

1"1/4

25

163

120

90

98

11.0

11.0

63

1"1/2

32

188

126

107

110

14.0

14.0

73.5

2

38

188

150

124

119

14.0

14.0

82.8

2"1/2

48

343

168

135

135

17

15.6

103.5

3"

65

343

198

166

150

17

20

118

4"

75

343

252

207

161

17

28

130

Product Description:
