Wv301 Stainless Steel One-Piece Flange Ball Valve

Specifications

Applicable media: Water, oil, and gas.

Applicable temperature: −20°C to +180°C.

Maximum allowable pressure: 2 MPa (room temperature).

Flange specifications: DIN 2501.

Category: Stainless steel ball valve Prev: Wv302 Stainless Steel Two-Piece Flange Ball Valve Next: Wv104 Stainless Steel Three-Way Ball Valve
Description Contact Us

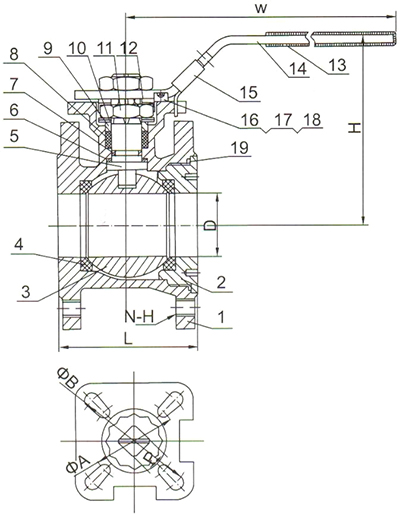

External Dimensions:

NO.

Name

Material

1

BODY

304/316

2

CAP(1)

304/316

3

BALL

304/316

4

BALLSEAT

PTFE

5

STEM

304

6

STEMPACKING

PTFE

7

O-RING

NBR

8

STEMSEAT

PTFE

9

GLAND

304

10

SPRINGWASHER

301

11

NUT

304

12

WASHER

304

13

HANDLESLEEVE

PVC

14

HANDLE

304

15

LOCKING

304

16

BOLT

304

17

BOLTNUT

304

18

BOLTWASHER

304

19

BODYPACKING

PTFE



DN

P

A

B

N-H

W

H

L

DN15

9

36

42

4-M12

140

78

42

DN20

9

36

42

4-M12

140

84

44

DN25

11

42

50

4-M12

152

93

50

DN32

11

42

50

4-M16

152

105

60

DN40

14

50

70

4-M16

188

112

65

DN50

14

50

70

4-M16

188

120

80

DN65

17

70

102

4-M16

230

145

113

DN80

17

70

102

8-M16

230

155

120

DN100

22

102

102

8-M16

230

189

154
