Wv302 Stainless Steel Two-Piece Flange Ball Valve

Specifications

Applicable media: Water, oil, and gas.

Applicable temperature: −20°C to +180°C.

Maximum allowable pressure: 2 MPa (normal temperature).

Flange specifications: JIS B2220 10K.

Category: Stainless steel ball valve Prev: Wv201ff Mini Stainless Steel Female Thread Ball Valve Next: Wv301 Stainless Steel One-Piece Flange Ball Valve

Description Contact Us

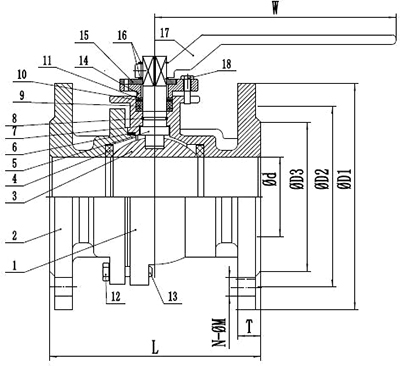

External Dimensions: Product Description:

Stay Connected Partner With Us

Required fields are marked *.
Your suggestions and questions are highly valued by us. Please fill out the form below if you have any queries concerning the goods and services offered by Wakamatsu. We will get back to you as soon as we can.

About Us

Shanghai Wakamatsu Metal Products Co., Ltd.

Founded in 2003, Shanghai Wakamatsu is a Japan-funded manufacturer specializing in stainless steel screwed fittings, valves, and bite type tube fittings.

With over two decades of industry expertise, we combine Japanese precision manufacturing with advanced production facilities to deliver high-quality solutions for global clients.

Our products are widely used in construction, industrial equipment, and safety systems, and are trusted by customers across Japan, Europe, and Southeast Asia.

Factory scenario

News

Leakage caused by weld defects
13 Oct, 2025
Both large metal containers and hundreds of kilometers of fluid transmission pipelines are connected by welding. Through the welding method, the welded joint wi...
Read More
Use and characteristics of mini ball valve
13 Oct, 2025
Product function: it is mainly used to switch, cut off or connect the medium in the pipeline, and can also be used for fluid regulation and control. It can not ...
Read More
Application of stainless steel ball valve Shanghai ruosung metal products Co., Ltd
13 Oct, 2025
Introduction to ball valve: Ball valve is mainly used to cut off, distribute and change the flow direction of medium in the pipeline. Ball valve is a new type o...
Read More
Up knowledge, what is the soft and hard of stainless steel pipe fittings expressed by?
13 Oct, 2025
Stainless steel is certainly familiar to everyone. It can be seen everywhere in life, such as stainless steel thermos cups, stainless steel bowls, etc. in fact,...
Read More

If You Need More Help, Let Us Know.

ABOUT US

PRODUCTS

CAPABILITY

NEWS

Phone: +86-21-59261529
Email: sales@sh-wakamatsu.com
Email: panhy@sh-wakamatsu.com
Add: B3 Factory , Industrial Park, Jinze Town, Shanghai, China

NO.	Name	Material
1	BODY	304/316
2	CAP	304/316
3	BALL	304/316
4	BALLSEAT	PTFE
5	STEM	304
6	GASKET	PTFE
7	STEMWASHER	PTFE
8	O-RING	FPM
9	PACKING	PTFE
10	WASHER	304
11	WAVESPRING	304
12	NUT	304
13	BOLT	304
14	GLAND	304
15	STOPPER	304
16	CIRCLIPS FOR SHAFT	304
17	HANDLE	WCB
18	SNAPPING	304

DN	d	L	W	D3	D2	D1	T	N-M	A	J-M
DN15	15	108	120	51	70	95	12	4-φ15	42	4-M5
DN20	20	117	120	56	75	100	14	4-φ15	42	4-M5
DN25	25	127	180	67	90	125	14	4-φ19	50	4-M6
DN32	32	140	180	76	100	135	16	4-φ19	50	4-M6
DN40	40	165	243	81	105	140	16	4-φ19	70	4-M8
DN50	50	178	243	96	120	155	16	4-φ19	70	4-M8
DN65	65	190	325	116	140	175	18	4-φ19	102	4-M10
DN80	80	203	325	126	150	185	18	8-φ19	102	4-M10
DN100	100	229	325	151	175	210	18	8-φ19	102	4-M10
